Flash Sale ✔️ ROTARY TABLE 4IN. LOW PROFILE W/TILT.TABLE ✔️

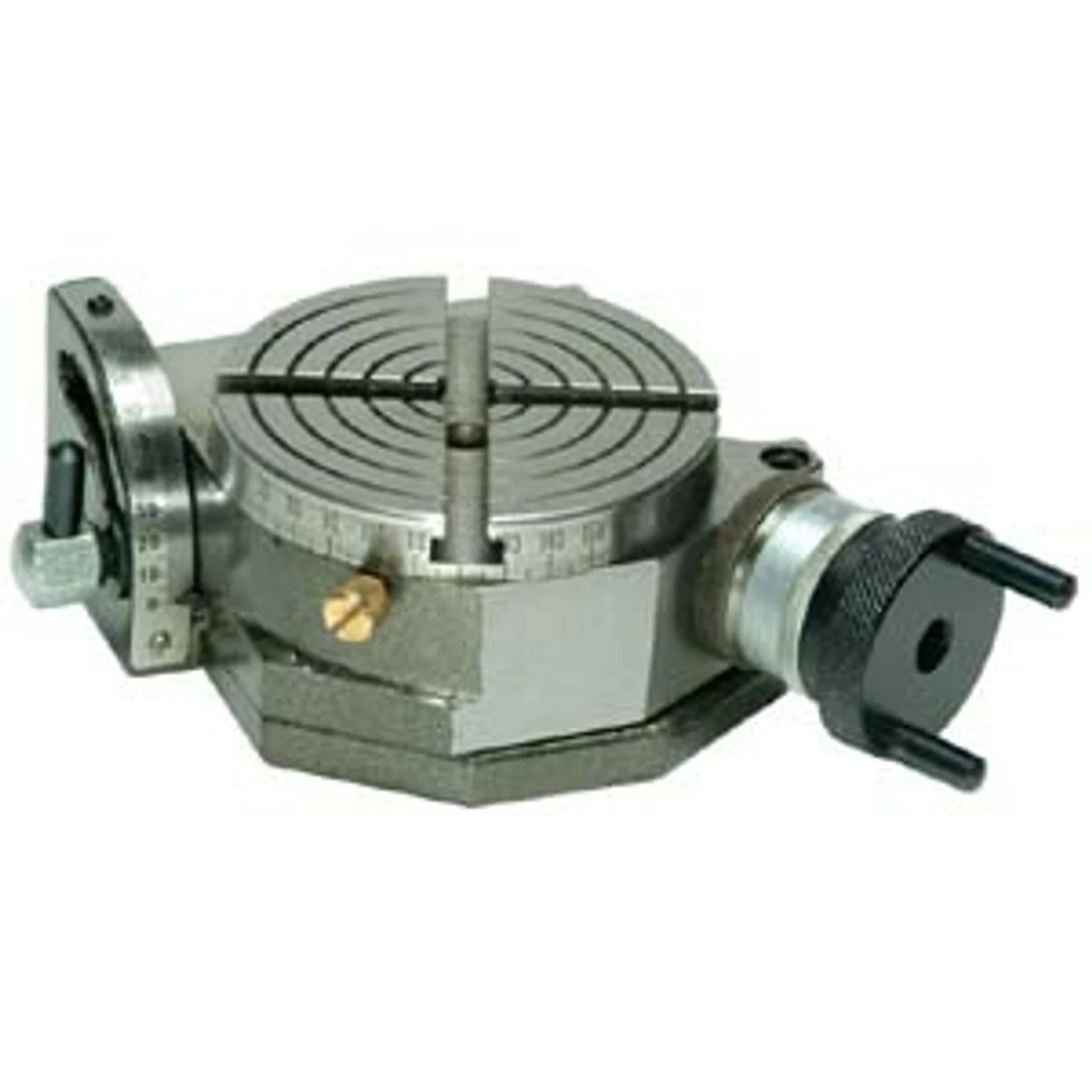

Titling Rotary Table

Ideal for engineering applications small enough to be mounted on small mills or
on a lathe vertical slide or cross slide.
The table tilts up to 90 degrees with a scale marked in 1-degree graduations.
The table itself is graduated 0-360 degrees in 5-degree divisions.
The handle is graduated 0-10 in 5-degree division and the handle can disengaged
for rapid rotation of the table.
Bronze worm wheel and steel worm with 36 to 1 ratio, table surface 4 radial
t-slots 5/16″ wide.

Base: 5.3/4″ x 5″ (145mm x 126mm)
Two 10mm mounting holes separated by 110mm
Table Diameter: 4″ (100mm)
Fine grained cast iron
Precision ground
Weight: 4.9 kg
