Outlet 🎁 ROTARY TABLE 4IN. HOR/VER 😀

B2724

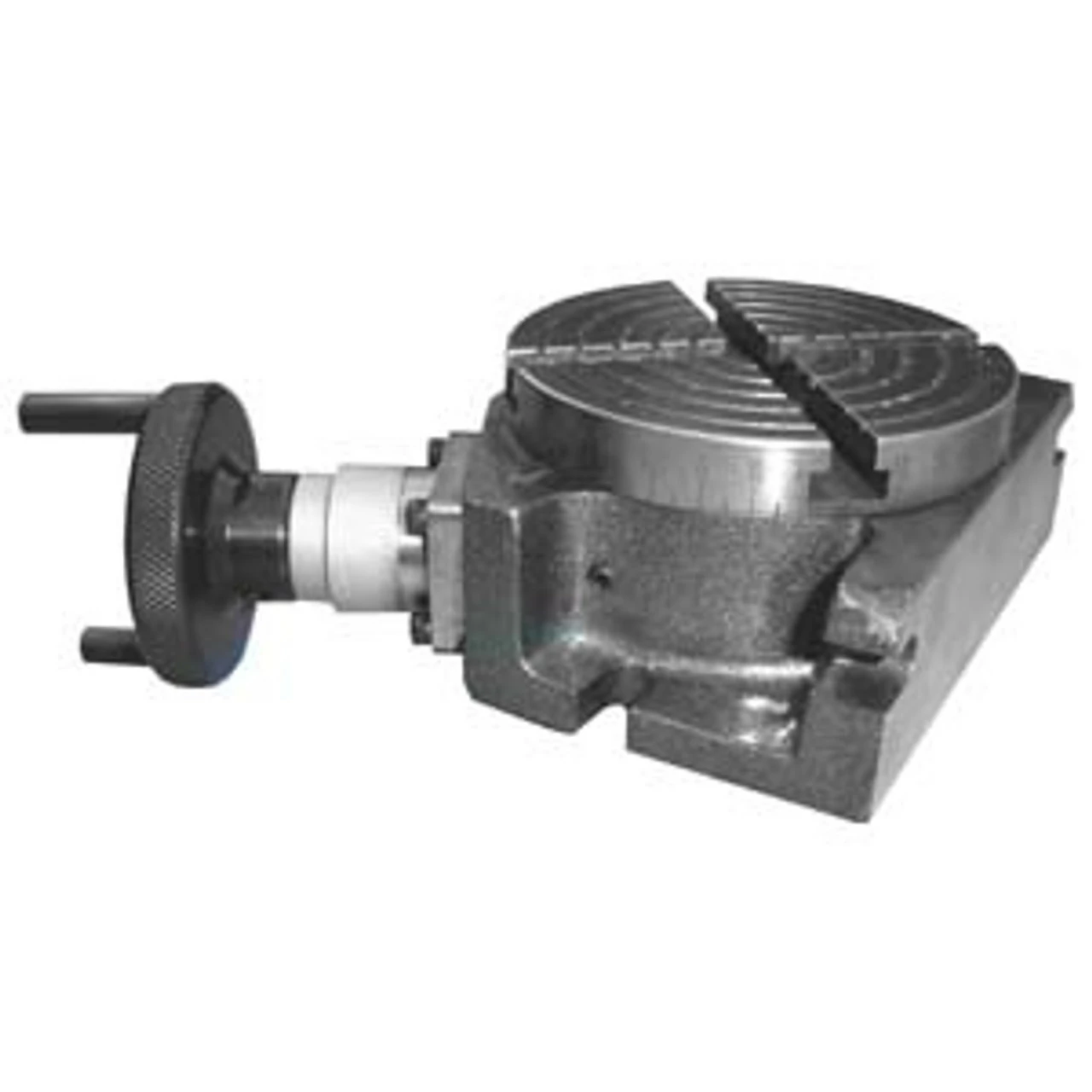

Horizontal/Vertical Rotary Table 4”

This rotary table is ideal for milling and multi-purpose work and anyone creating smaller precision work.

The table features a whole degree scale on the dial, lash adjustment screw, worm gear drive, reference lines and a ball bearing rotary support.

The overall height of the table is under 2” which makes it ideal when used with smaller milling attachments.

The hand wheel scale can be zeroed and is marked in degrees and 10 min divisions.

The table can be locked in any position and the bronze worm wheel and steel worm feature 36 to 1 ratio.

The table is calibrated in 5 deg increments around the rim.

Centre height in vertical position is 2 1/16 in bringing the table within the range of most model engineering lathes & mills

Works with tool holders up to ¾” x 1 ¾” shank.

Machined steel construction with a black oxide finish.
