CX612

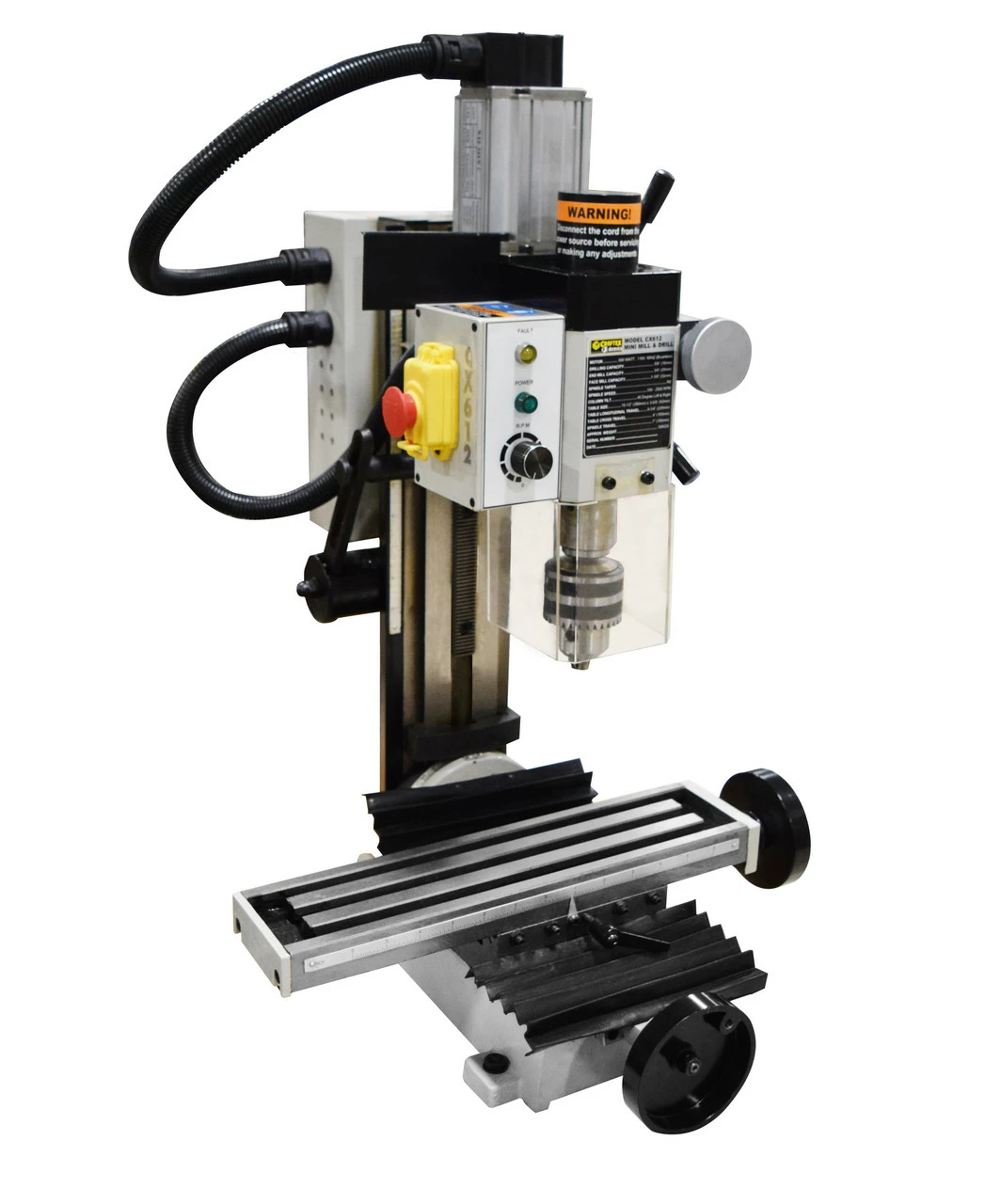

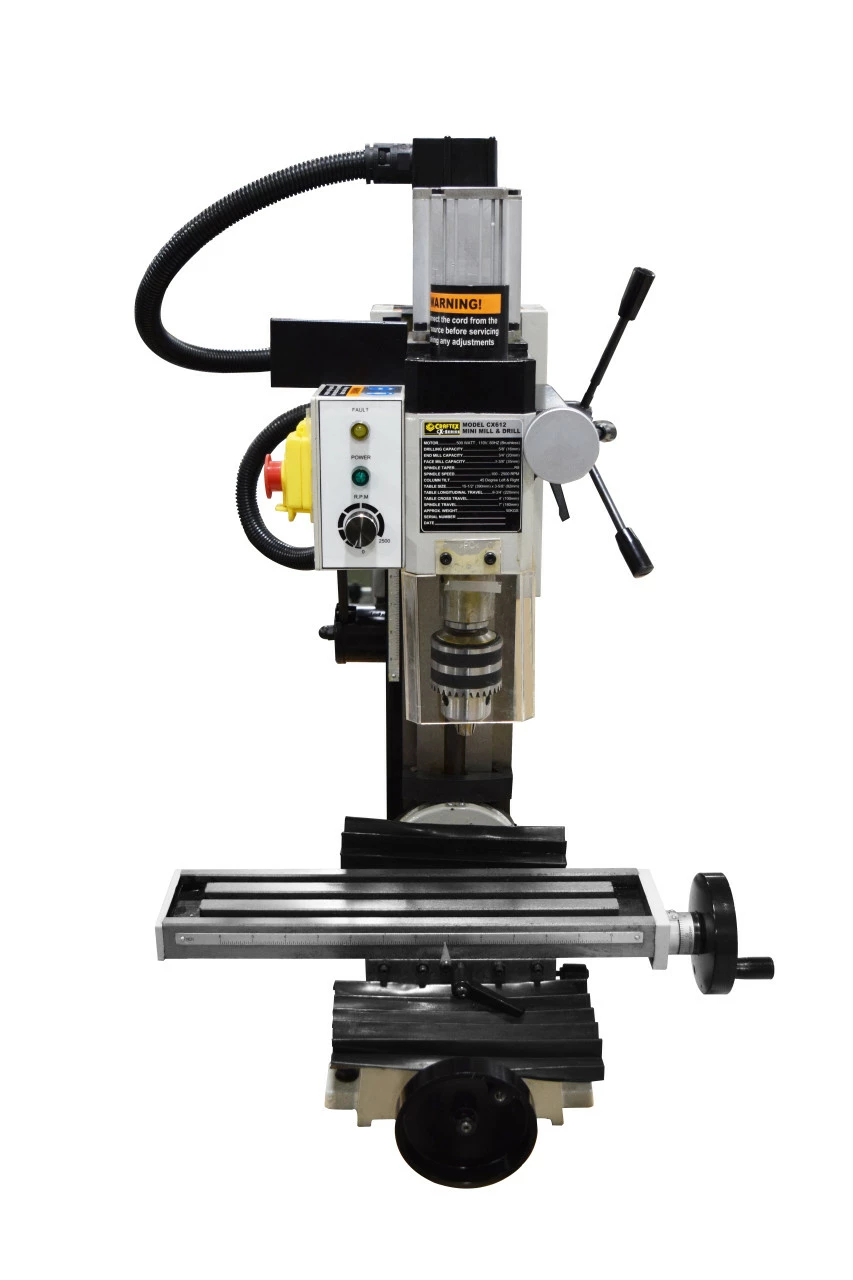

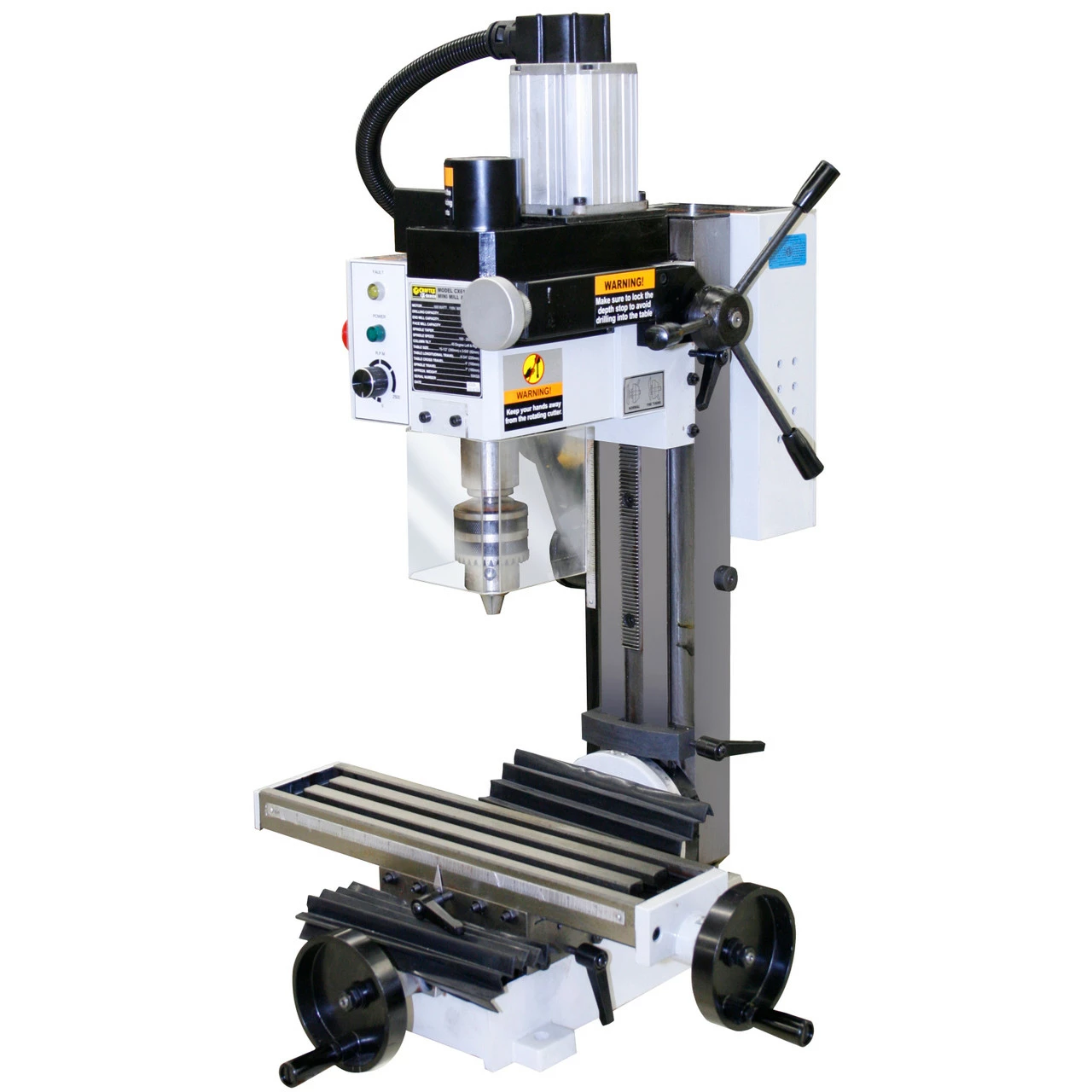

3/4 HP Mini Mill with Brushless Motor – Craftex CX-Series

The CX612 can handle any kind of job up to 5/8″ drilling, 5/8″ end mill and 1-3/8″ facing with ease and is a great addition to any small shop. The variable speed feature on this mini mill allows you to increase RPM using the variable speed knob and eliminates the belt changing hassle. This mini mill is loaded with lots of features and its brushless motor is more powerful, quieter and adds to the overall appeal of this mill.

Other features include

Brushless Motor
Dovetail Column
Emergency Stop Button
Adjustable Depth Stop
Fine Feed Control Knob
Rapid Down Feed Handle
Chip Guard

Like all CX-Series machines, this unit features powder coated paint, sharp looking colour and a full 3 year warranty.

SPECIFICATIONS

Motor: 500 Watt, 110-V, 60Hz, Brushless
Drilling Capacity: 5/8″ (16mm)
End Mill Capacity: 3/4″ (20mm)
Face Mill Capacity: 1-3/8″ (35mm)
Spindle Taper: R8
Head Tilt: + – 45°
Number of Spindle Speeds: Variable
Range of Spindle Speeds: 100 RPM – 2500 RPM

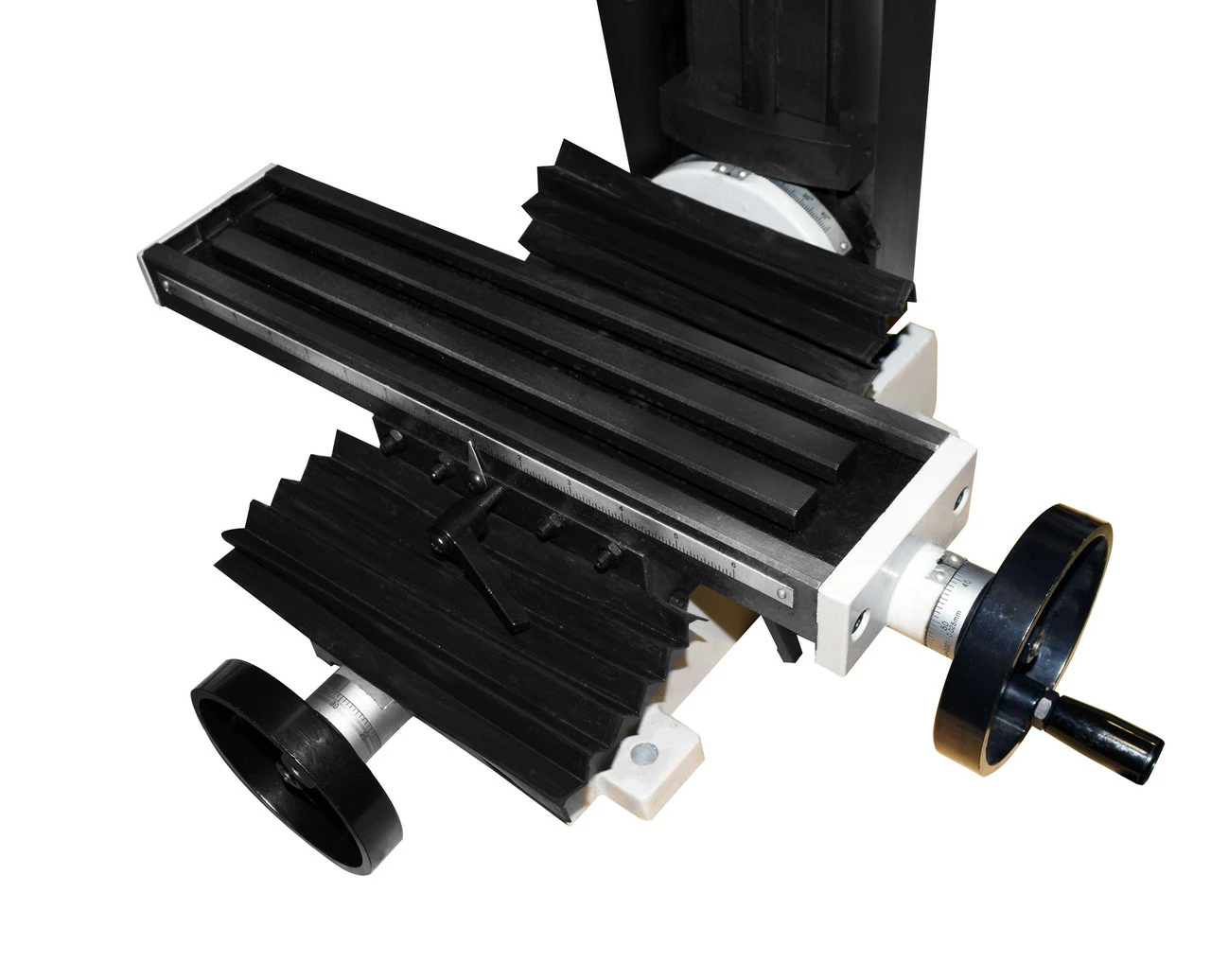

Table Size: 15-1/2″ (390mm) x 3-5/8″ (93mm)
Max. Table Longitudinal Travel: 8-3/4″ (220mm)
Max. Table Cross Travel: 4″ (100mm)
Maximum Spindle Travel: 7″ (180mm)
Number of T-Slots: 3
Net Weight (approx): 50 Kg
