CX605

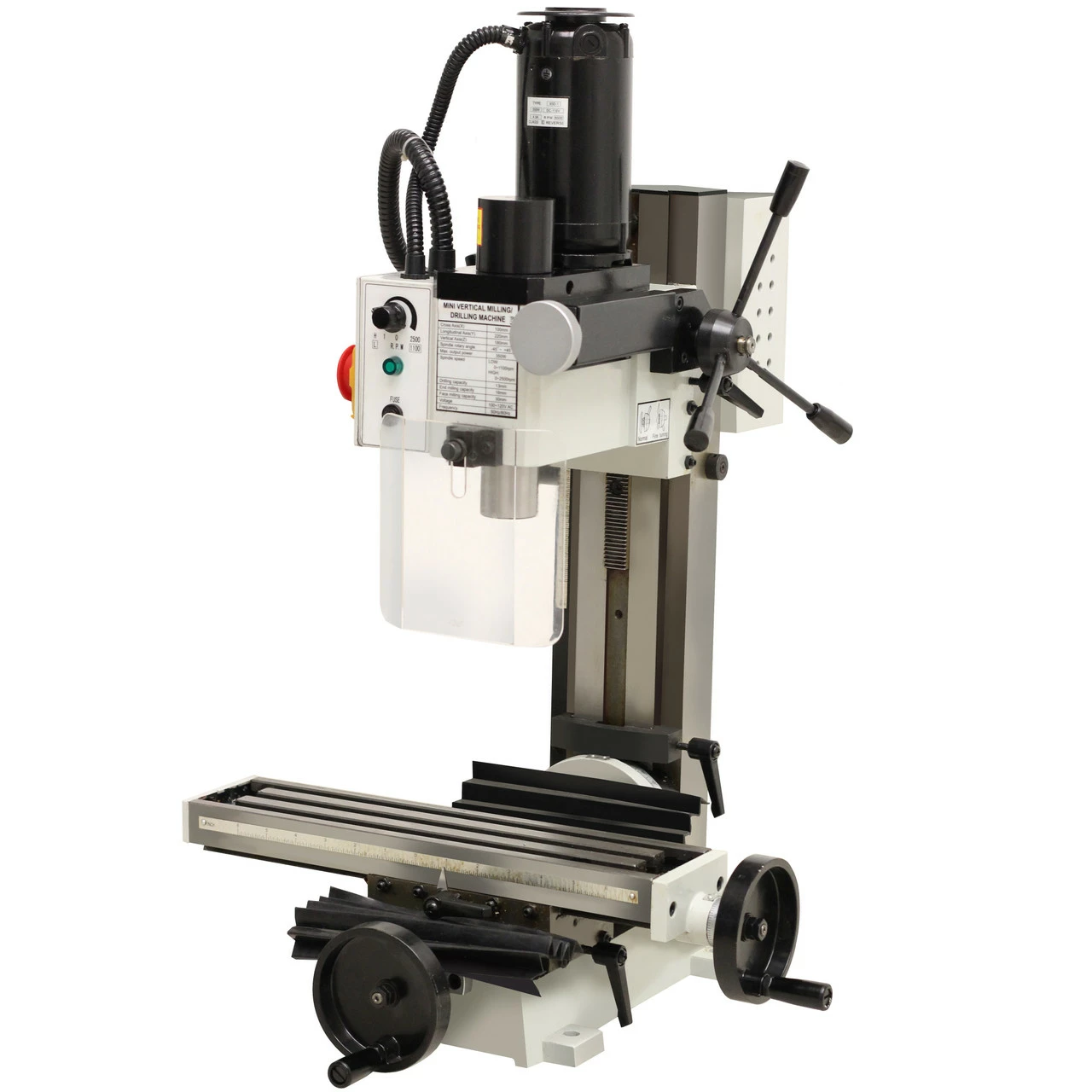

Mini Milling Machine – Craftex CX-Series

The CX605 is a small, high accuracy and affordable milling and drilling machine. It features a 1/2 HP motor and has a maximum milling capacity of 5/8″ and drilling capacity of 1/2″. The precision ground table travels 8-1/2″ on X-axis and 4″ on Y-axis featuring three T-slots to secure the work-piece, table locks and scale for accuracy and safe operation. The head tilts up to 45-degree to the right and 45-degree to the left and the limit block allows perfect repeated cuts.

Moreover the CX605 offers fine feed and coarse feed with low (0-1100 RPM) and high (0-2500 RPM) spindle speed range, variable speed control, high quality construction and mounting holes on its base to be mounted on a stand or workbench.

Like all CX-Series machines, this unit features powder coated paint, sharp looking two tone colours and a full 3 year warranty.

SPECIFICATIONS

Motor: 1/2 HP, 110-V, 4.5 Amp
Drilling Capacity: 1/2″ (13mm)
End Mill Capacity: 5/8” (16mm)
Face Mill Capacity: 1-1/8” (30mm)
Spindle Taper: R8
Head Tilt: + – 45 Degree
Number of Spindle Speeds: Variable
Range of Spindle Speeds: Low: 0 – 1100 RPM, High:0 – 2500 RPM
Max. Table Longitudinal Travel: 8-1/2” (220mm)
Max. Table Cross Travel: 4” (100mm)
Maximum Spindle Travel: 7″ (180mm)
Number of T-Slots: 3
Net Weight (approx): 50 Kg
Warranty: 3-Years
