CX611

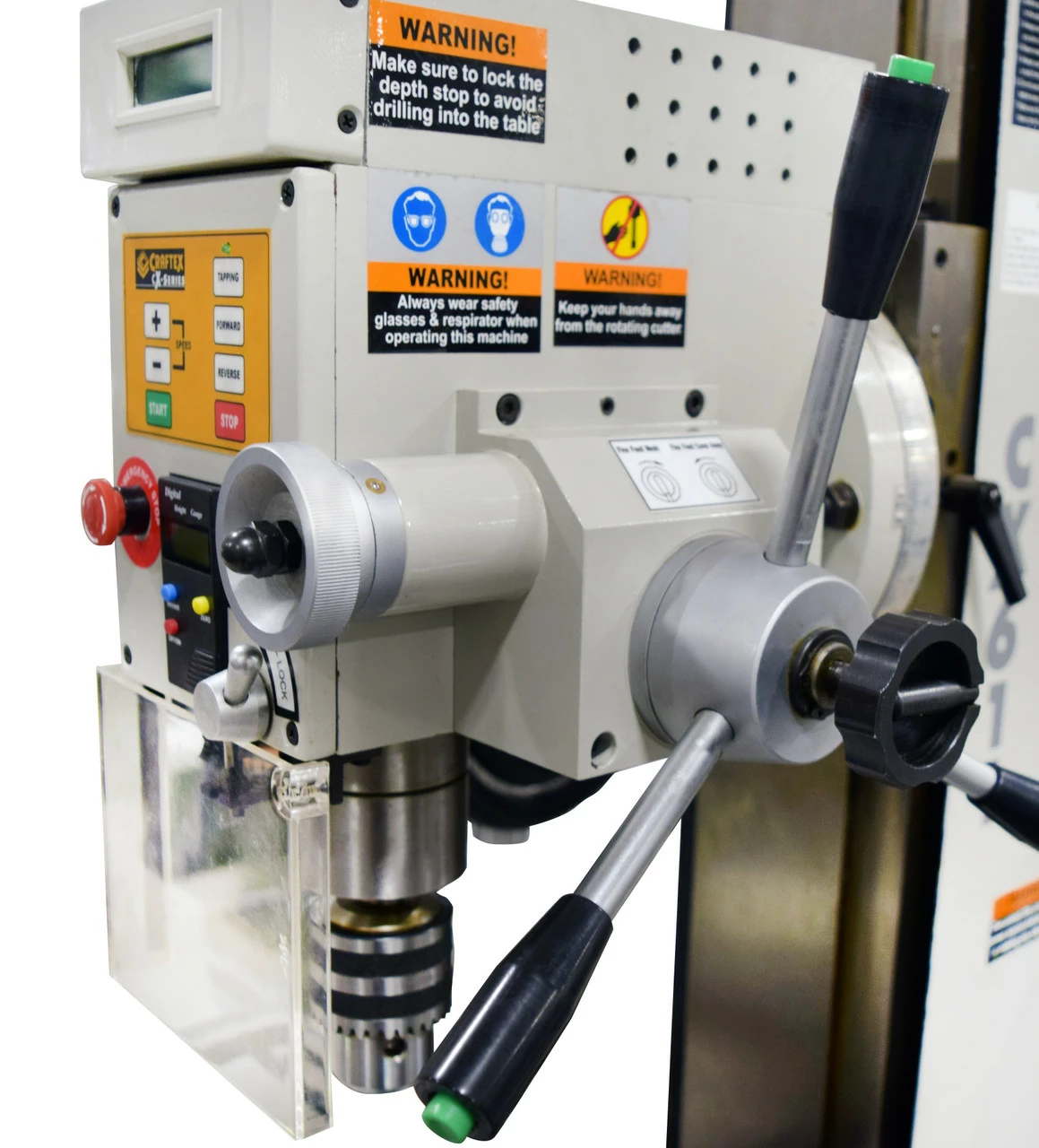

6″ x 21″ Mill / Drill with Variable Speed – Craftex CX-Series

This 6″ x 21″ mill / drill is carefully built for accuracy and rigidity. Just like larger and expensive mills, the headstock on the CX611 tilts up to 90° to the right and 30° to the left for machining complex angles and the 6″ x 21″ table provides a large work space and smooth longitudinal and cross movement to ensure accuracy. With the variable speed feature on this machine, you won’t have to worry about the proper spindle speed. Increase or decrease the RPM to best suit the type of material you are machining and the type of cutting tool being used by using the variable speed push buttons.

Other features are:

Digital Spindle Scale Reads Metric and Inches
Headstock Tilts 90° to the right and 30° to the left
Digital RPM Display
Push Button Variable Speed Feature
Dovetail Column
Emergency Stop Button
Chip Guard
Comes with Drill Chuck, Arbor, T-nuts and Wrenches

Like all CX-Series machines, this unit features powder coated paint, sharp looking colour and a full 3 year warranty.

SPECIFICATIONS

Motor: Brushless, 1000 Watt, 110V, 6 Amp, 60Hz
Drilling Capacity: 1″ (25mm)
Max. Tapping Capacity: 1/2″ (12mm)
End Mill Capacity: 5/8″ (16mm)
Face Mill Capacity: 2″ (50mm)
Spindle Taper: R8
Throat: 9″ (230mm)
Max. Distance Spindle to Table: 15-1/8″ (380mm)
Number of Spindle Speeds: Variable
Range of Spindle Speeds: 100 – 1800 RPM
Head Tilt: 90° Right and 30° Left
Table Size: 21-1/2″ (550mm) x 6″ (160mm)
Max. Table Longitudinal Travel: 16″ (400mm)
Max. Table Cross Travel: 5-3/4″ (145mm)
Maximum Spindle Travel: 11-3/4″ (300mm)
Number of T-Slots: 3
Overall Dimension: 29″ Length x 32″ Width x 41″
Net Weight (approx): 165 Kg
Warranty: 3-Years

Optional Stand Available – Model: CX611ST
