CX704

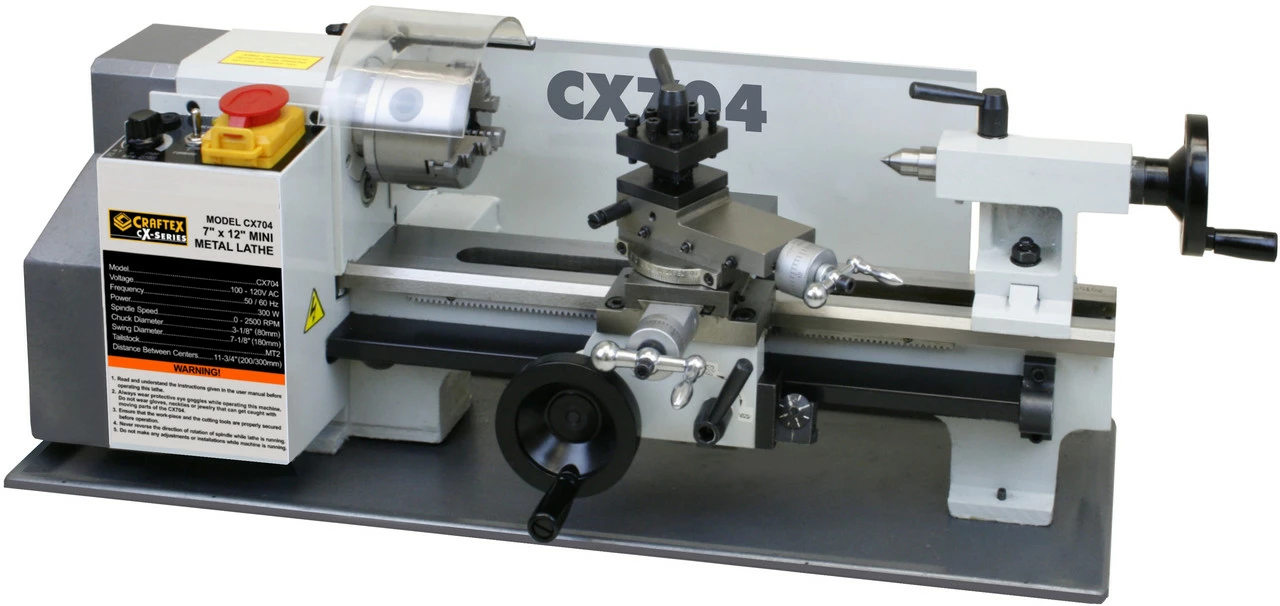

7″ x 12″ Mini Metal Lathe – Craftex CX-Series

This mini metal lathe has the features and precision of larger lathes and is the perfect machine for hobby machinists. The variable speed switch allows the user to select the correct speed required for the job and the forward/reverse switch controls the direction of rotation of the spindle. The lathe features an efficient 1/2 HP motor, MT#3 spindle taper, cast iron bed construction, spindle speed ranges Low 0-1100 and High 0-2500 RPM, threading dial indicator, inch and metric graduation, three jaw chuck, complete set of change gears, chip tray and splash guard.

A small beautiful lathe loaded with lots of features.

Like all CX-Series machines, this unit features powder coated paint, sharp looking two tone colours and a full 3 year warranty.

SPECIFICATIONS

Motor: 1/2 HP 110 V, 60 Hz, Single Phase, 3 Amps
Number Of Speeds: Variable (Low 0 – 1100, High 0 – 2500 RPM)
Swing Over Bed: 7″

Distance Between Centres: 12″
Swing Over Cross Slide (RD): 2-1/8″
Swing Over Saddle: 5″
Compound Slide Travel: 2-3/4″
Carriage Travel: 10-1/2″
Cross Slide Travel: 2-3/4″
Maximum Tool Bit Size :5/16″
Headstock Construction: Cast Iron
Spindle Bore: 20mm
Spindle Size: 3″
Spindle Taper: MT#3
Range of Spindle Speeds: Low 0 – 1100, High 0 – 2500 RPM
Tailstock Travel: 2-1/2″
Tailstock Taper: MT#2
No. of Inch Threads: 18
Range of Inch Threads: 12 – 52 TPI
No. of Metric Threads: 10
Range of Metric Threads: 0.4 – 2.0mm
Bed Construction: Cast Iron
Overall Dimension of the lathe: 28″ x 12″ x 12″
Weight: 75 lbs
Warranty: 3-Years
