Coupon 👏 LATHE/MILL COMBINATION 110V 3/4HP 60HZ CX615 😉

CX615

SWEETEN THE DEAL: Purchase this Mil / Lathe and get a FREE Stand (CX615ST) Value $499. Simply add this Mill / Drill Machine to your cart to qualify.  Promotion valid until March 25th, 2023

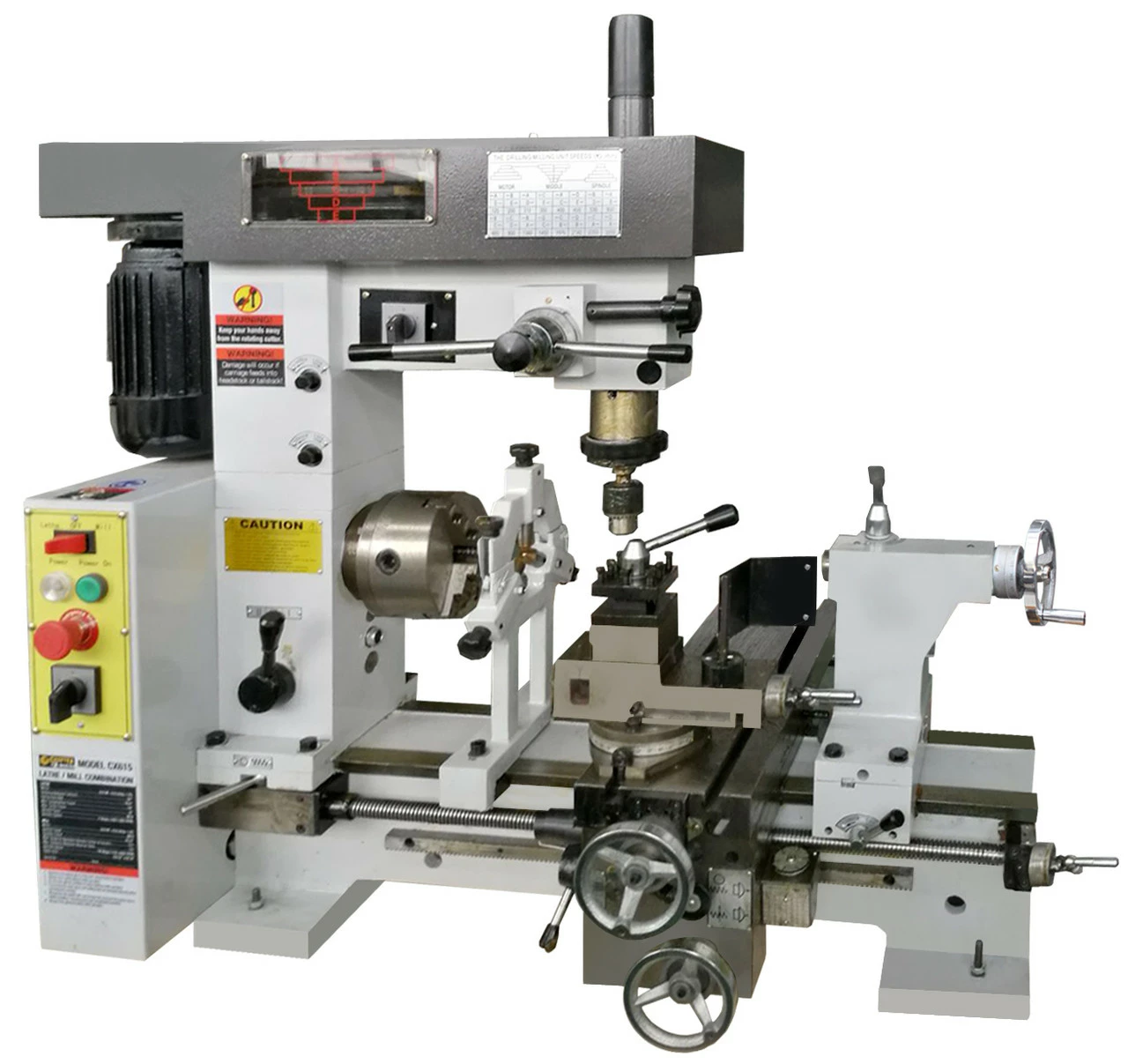

16″ x 20″ Mill Lathe Combination

This combination Mill Lathe is an excellent machine for any metalworker, from the hobbyist to the veteran machinist. Not only will it save space in your shop, but it has the features to allow you to tackle a wide range of jobs. Features 16″ swing and 20″ between centre, 2 independent motors, a 1 1/8″ spindle bore, magnetic forward & reverse switches and hardened & ground bed ways. Milling head unlocks and can be rotated away for better clearence when using the metal lathe function.

The machine comes complete with a 5″ Lathe Chuck, 1/2″ Drill Chuck, Steady Rest, Follow Rest, 2 Lathe Centers, Turret Tool Post (1/2″ Capacity), Change Gears & Wrenches

Like all CX-Series machines, this unit features powder coated paint, sharp looking two tone colours and a full 3 year warranty.

Lathe Specifications
Motor # 1 : 3/4 HP, 110V
Spindle bore: 1 1/8″
Speeds 7 (160 – 1360 RPM)
Spindle taper: MT4
Other tapers: MT3
20″ between centres
5 1/2″ swing above cross slide
Cross slide travel: 8″
Threads: Metric: 2-6 Inch: 120 – 4 TPI
Feed 12 (.05 – .35)

Milling Specifications
Motor # 2: 3/4 HP, 110V motor
Speeds 16 (120 – 3000 RPM)
Spindle to work table: 12″
Spindle travel: 4 1/4″
Drill capacity : 7/8″
End mill capacity: 1 1/8″
Face mill capacity: 3 1/8″
Spindle taper: MT3
Combination Lathe/Mill weight: 280kg.
Carton size: 23″ x 43″ x 44 1/2″

3 Year Warranty

Standard Equipment
5″ Lathe Chuck
1/2″ Drill Chuck
Steady Rest
Follow Rest
2 Lathe Centres
Turret Tool Post – 1/2″ Capacity
Change Gears
Wrenches
