CX708
SWEETEN THE DEAL:Β Purchase this Metal Lathe Planer and get a FREE 4 Jaw Chuck (CX708CHUCK). Value $219. Simply add this Lathe to your cart to qualify.Β Promotion valid until March 25th, 2023
10″ x 18″ Metal Lathe with Stand – Craftex CX-Series
A slightly larger gear head lathe for the serious hobbyist or the maintenance man who needs a small lathe for specialty repairs.
Featuring 10″ swing and 18″ distance between centers, 3/4HP motor and 6 speed gear head spindle, this lathe can tackle a variety of jobs. The solid cast iron construction ensures durability and dependable service.
FEATURES
Reversing Switch
18β Between Centers
1β Spindle Bore
MT4 Spindle Taper
Twin Belt Drives to 6 Speed (115 β 1626) RPM Gearbox
Heavy Duty Cast Iron Constructions
SPECIFICATIONS
Motor: 3/4 HP, 110V, 8.8 Amps
Swing Over Bed: 10β
Swing Over Cross Slide: 5β
Number of Inch Threads: 20
Inch Thread: 8-56 TPI
Number of Metric Threads: 9
Metric Thread: 0.5 β 3.0 mm
Lead Screw: 7 TPI
Longitudinal Feed: 0.0025 – 0.005

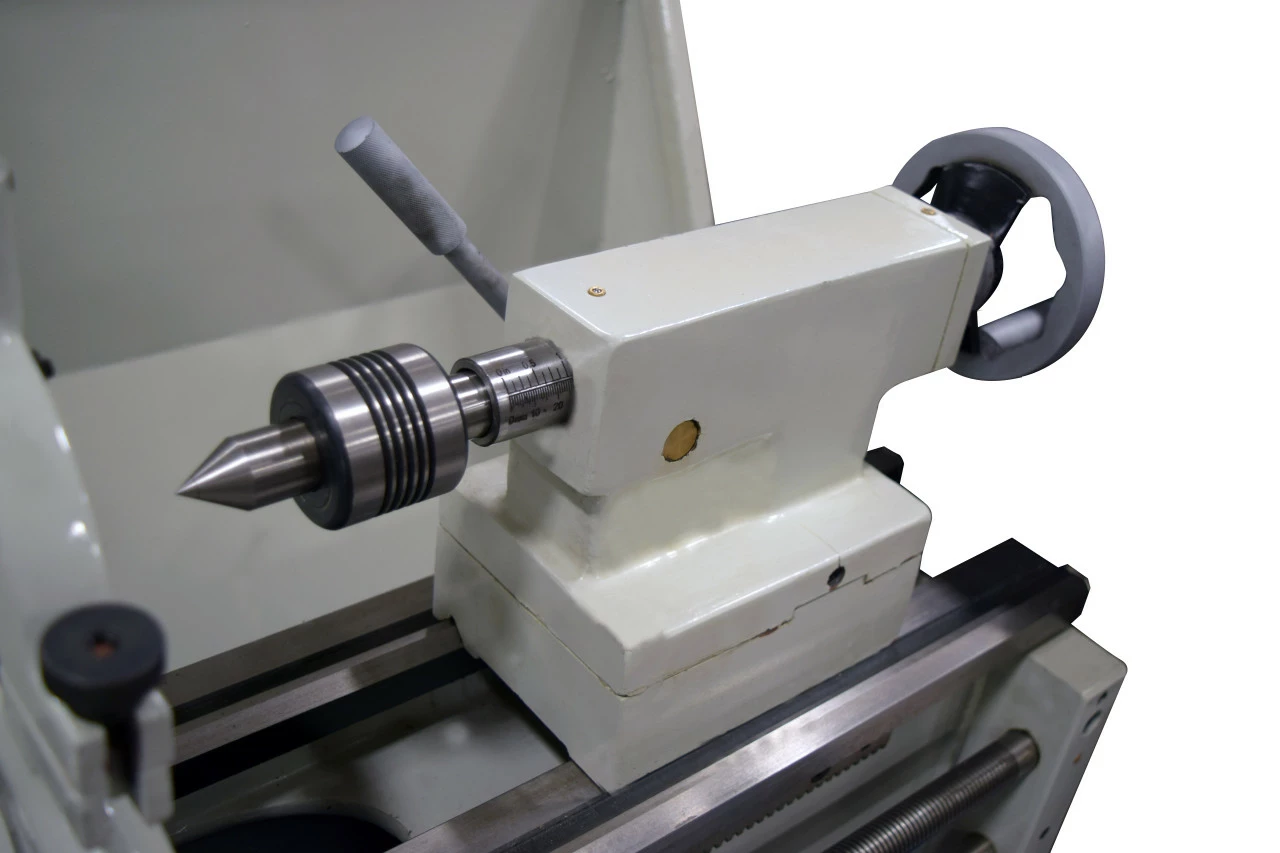

Tail Stock: MT2 Travel 1/4β Offset
Cross Slide: 4-1/2β Travel
Maximum Tool Size: 9/16″
Compound: 1β Travel
Max. Longitudinal Travel of Tool Slide: 2.75β
Max. Travel of Tail Stock Sleeve: 2
Gross Weight: 283 Kg
