CX707

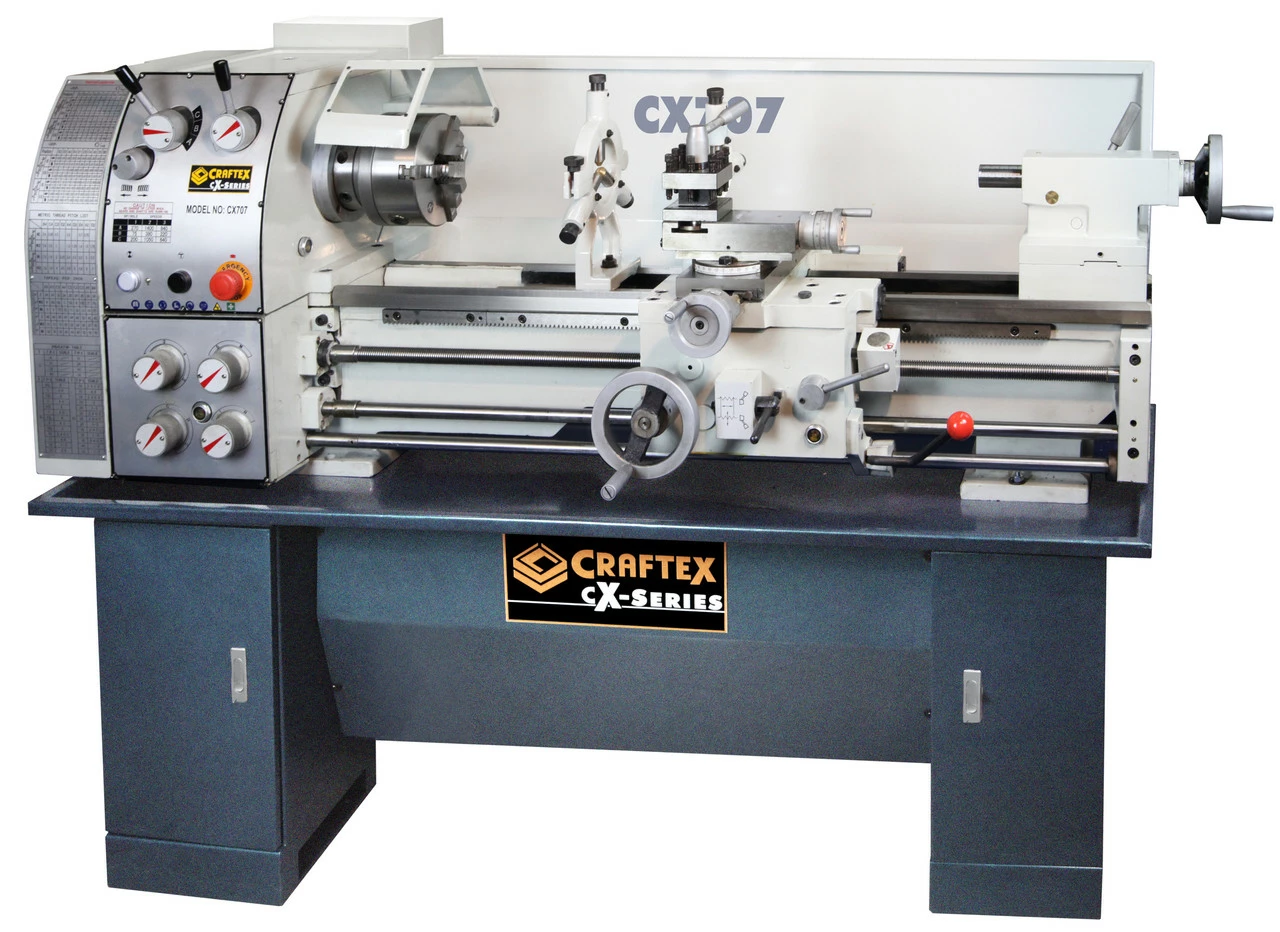

12″ x 36″ Gear Head Metal Lathe – Craftex CX-Series

Featuring a powerful 2HP, 220V motor, this lathe will tackle the toughest machining jobs with ease. The precision ground gears are hardened to withstand heavy duty turning and yet hold tight tolerances for precision work and the quick change gearbox makes thread cutting selection fast and efficient. Moreover the lathe features independent lead screw, hardened and ground V-bed way and stands on a heavy gauge welded steel stand. The stand features two storage cabinets with shelves and door locks

Like all CX-Series machines, this unit features powder coated paint, sharp looking two tone colours and a full 3 year warranty.

FEATURES

V-way bed is induction hardened and ground
Gap bed section
Independent lead screw and feed rod
Sealed gear box
Carriage mounted spindle control lever

Emergency stop

Threading dial indicator

Full length splash guard

SPECIFICATIONS

Motor: 2 HP, 220V, 1 phase

Tailstock spindle taper: MT3
Swing over bed: 12″
Swing over cross slide: 7″
Swing through gap: 17″
Distance between centers: 36″
Spindle bore: 1 7/16″
Spindle mount: D 1-4
Taper of spindle bore: MT5
Number of spindle speeds: 18
Range of spindle speeds: 65 – 1810 RPM
No. & range of metric thread: 32 (0.4 – 7mm)
No. & range of inch tread: 32 (4 – 60 TPI)
Max. compound slide travel: 3 3/4″
Max. cross slide travel: 6 7/8″
Tailstock spindle taper: MT3

Overall dimensions: (LxWxH): 66″ x 28 3/4″ x 24″
Gross weight: 400kg
Warranty: 3 Year

STANDARD EQUIPMENT

6″ 3-jaw chuck
8″ 4-jaw chuck
10″ face plate
Change gears
Full length splashguard
Chip tray

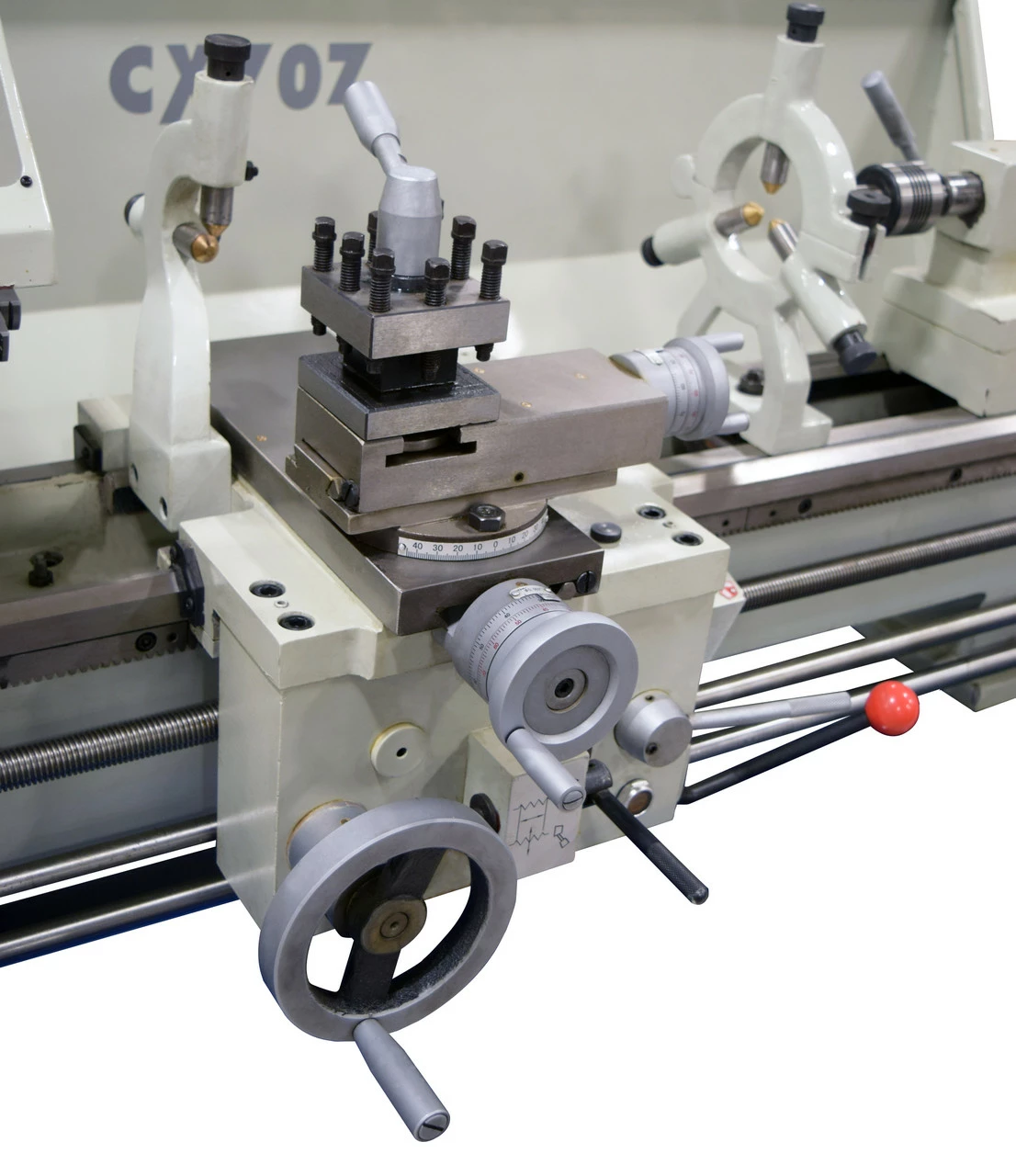

4-way turret tool post
Steady and follow rest
Centers with headstock center sleeve
Threading dial
Tool box with tools
Live centre
13mm drill chuck with arbor
Auto switch-off chuck cover
Cabinet stand
