Hot Sale 😉 LATHE 10IN. X22IN. METAL WITH DIGITAL READOUT CX706 🔔

CX706

SWEETEN THE DEAL: Purchase this Metal Lathe and get a FREE Stand (CX706ST) Value $399. Simply add this Metal Lathe to your cart to qualify.  Promotion valid until March 25th, 2023

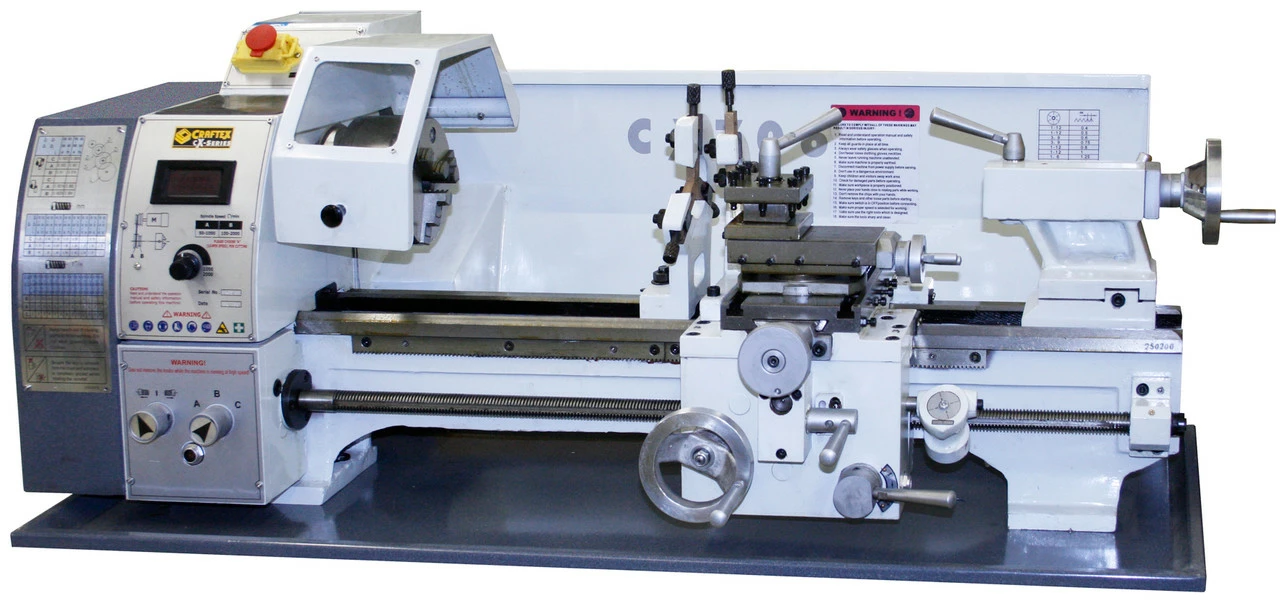

10″ x 22″ Metal Lathe with Digital Readout – Craftex – CX-Series

Powered by 1 HP motor, this 10” x 22” metal lathe with digital readout and variable speed control is a reliable workhorse and is able to take jobs requiring a 10″ swing, a 1″ spindle bore and 21-3/4″ distance between centers with ease. It is designed with hardened and precision ground bed, slide ways, oil bath lubricated gears and high quality spindle bearings to ensure smooth and vibration free operation. The variable speed with the combination of belt & gears setting allows user to choose from speeds ranging 50 – 2000 RPM and the four way tool post makes operation fast and efficient.

Like all CX Series machines, this unit features powder coated paint, sharp two tone colours, overall heavy duty construction and 3 year warranty.

Comes with 3 jaw chuck, 4 jaw chuck, face plate, steady rest, follow rest, mt2 centre, mt4 centre, change gears and wrenches.

FEATURES

Emergency Stop

Spindle Forward / Reverse Switch

Digital Spindle RPM Readout for precise cutting

Carriage control for left or right thread cutting

Easy to use carriage controls

Hardened and ground cast iron bed

Lubricated slide ways

Full length Splash Guard

Full Length Chip Tray

Four way tool post to hold the cutting tool

3-Years Warranty



SPECIFICATIONS

Motor: 1 HP, 110V

Swing Over Bed: 10″ (250mm)

Swing Over Cross Slide: 6″ (152mm)

Distance Between Centers: 21-3/4″ (550mm)

Width of Bed: 5-5/16″ (135mm)

Hole Through Spindle: 1″ (25mm)

Spindle Nose Taper: MT4

Number of Spindle Speeds: Variable

Range of Spindle Speeds: 50 – 2000 RPM

Number of Metric Threads: 21

Range of Metric Threads: 0.35mm – 3mm

Number of Imperial Threads & Range: 37/8-80 T.P.I

Range of Cross Feed: 0.0014″ – 0.004″

Range of Longitudinal Feed: 0.0025″ – 0.014″

Tool Post Type: 4 Way

Max. Compound Slide Travel: 3″ (80mm)

Max. Cross Slide Travel: 4-1/2″ (110mm)

Max. Carriage Travel: 17-3/4″ (187mm)

Tailstock Spindle Travel: 3″ (76mm)

Taper in Tailstock Spindle: MT2

Overall Dimension of the Lathe: L 45-1/3″ x W 22″ x H 22″

Weight: 319 lbs (145 kgs)
