CX503

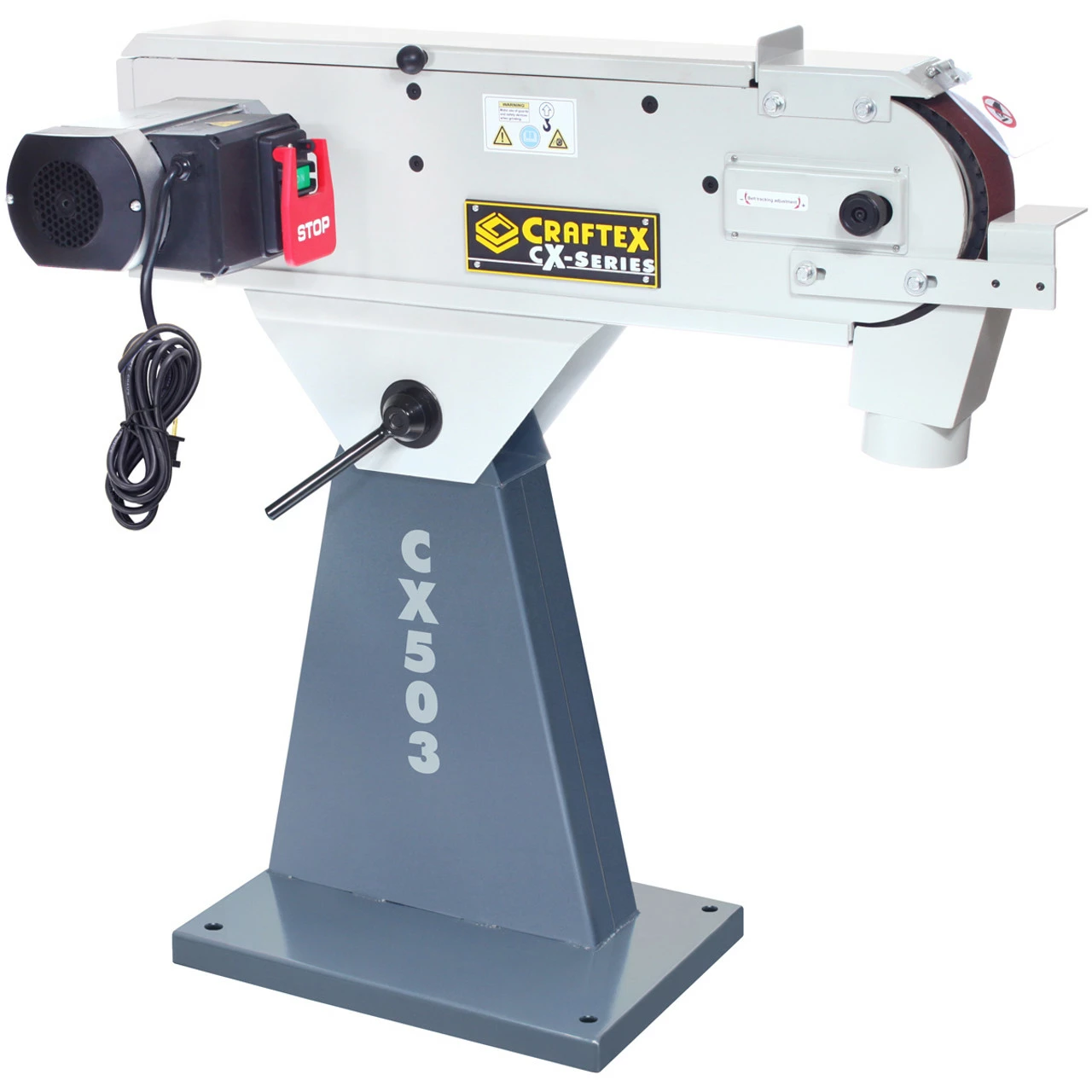

Metal Working Belt Sander – Craftex CX-Series

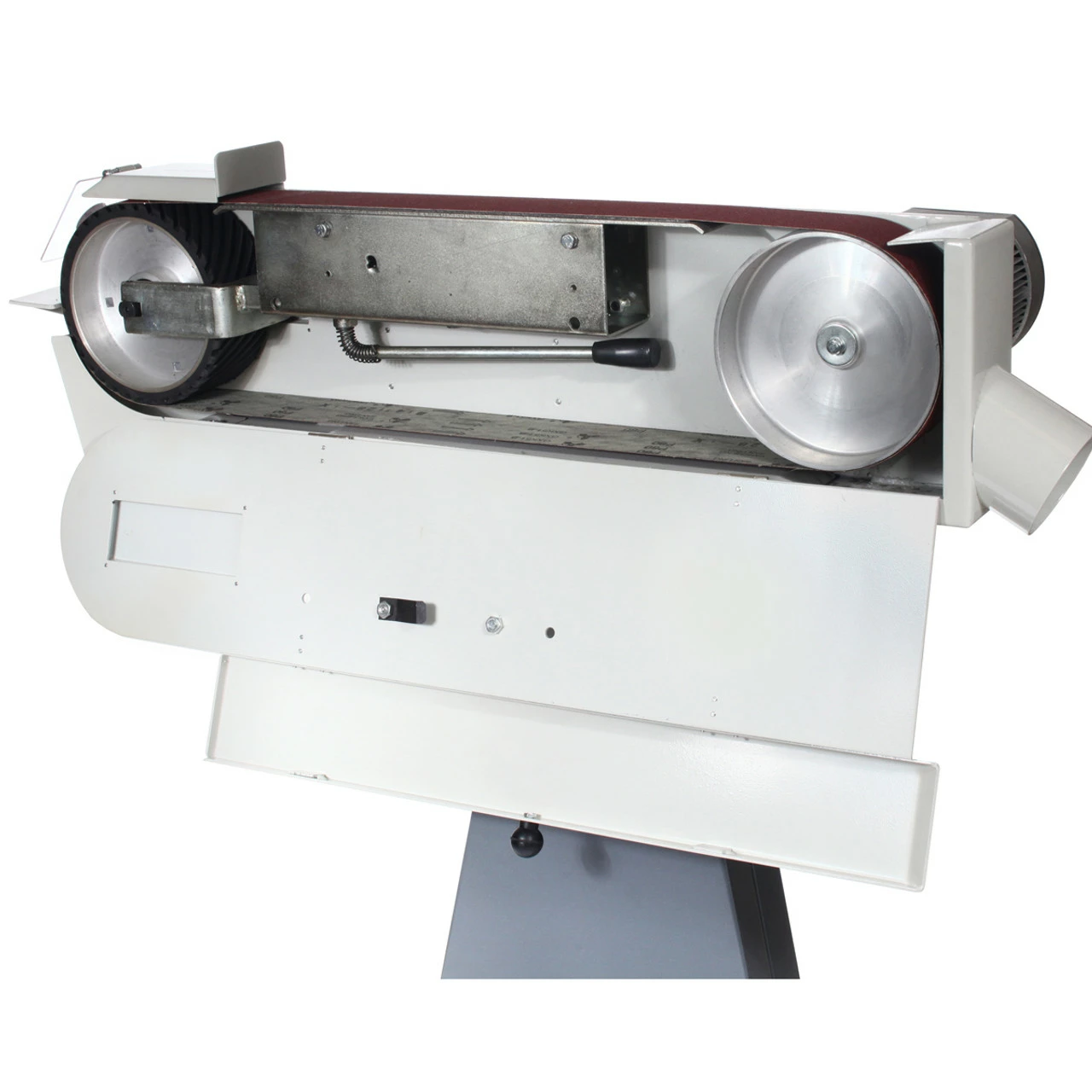

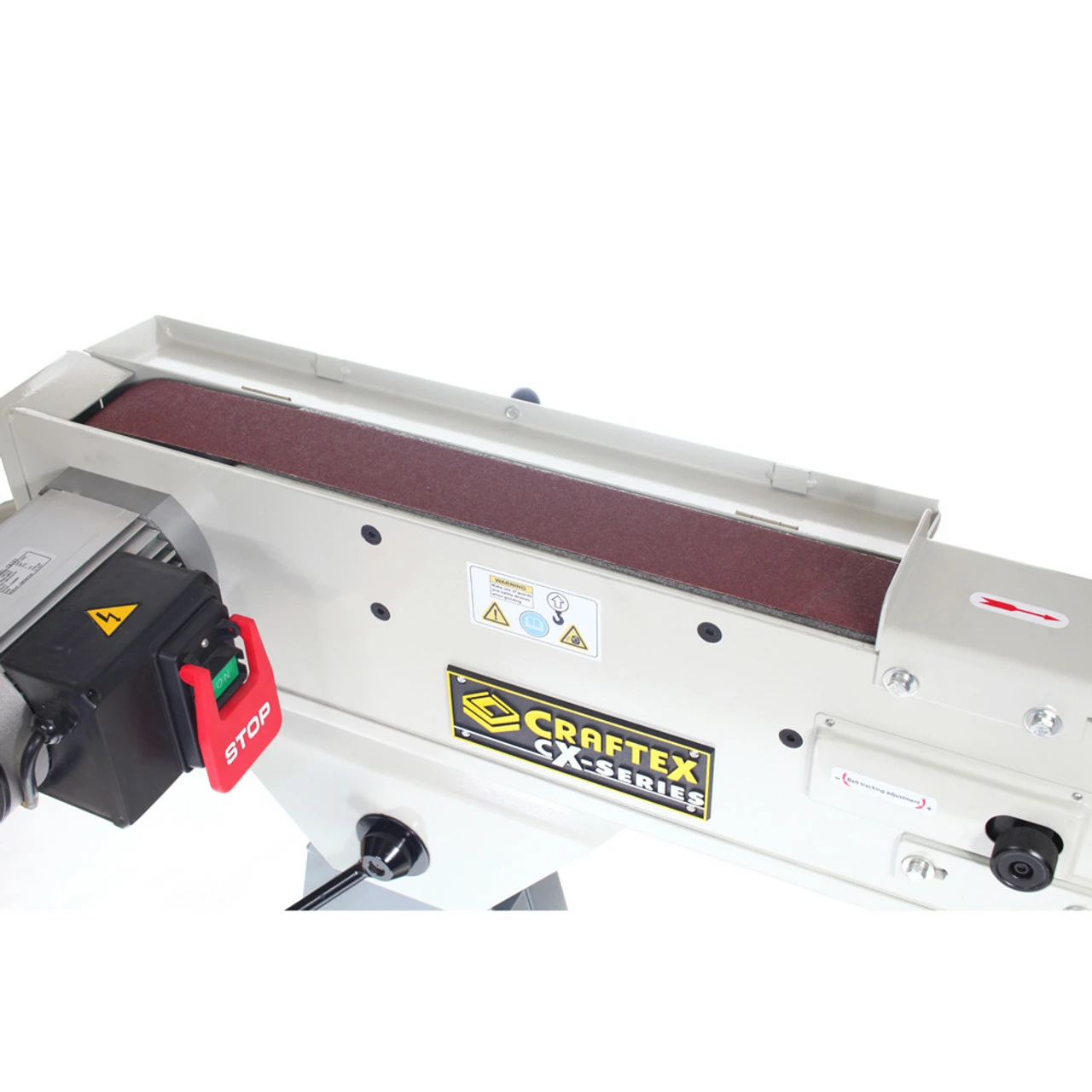

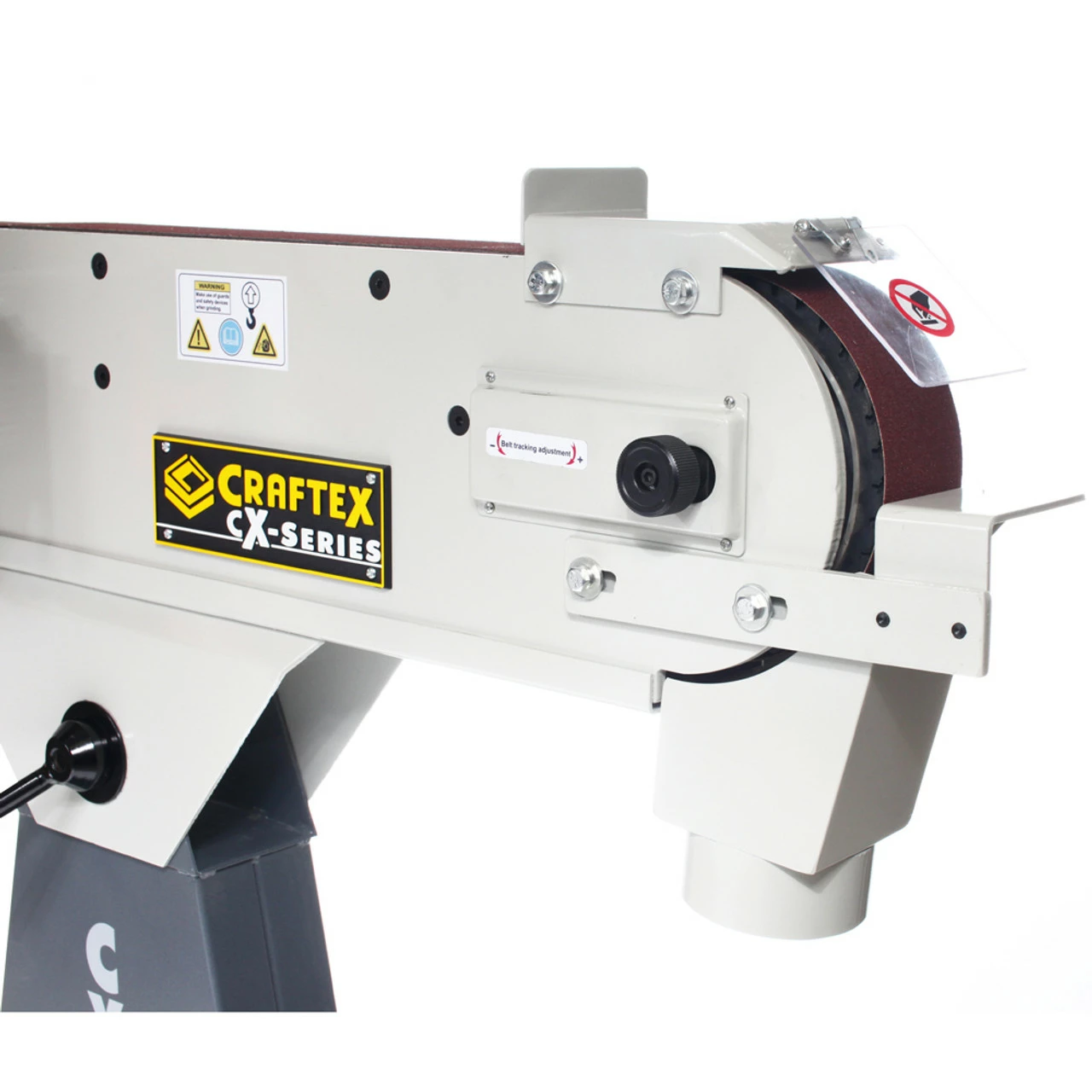

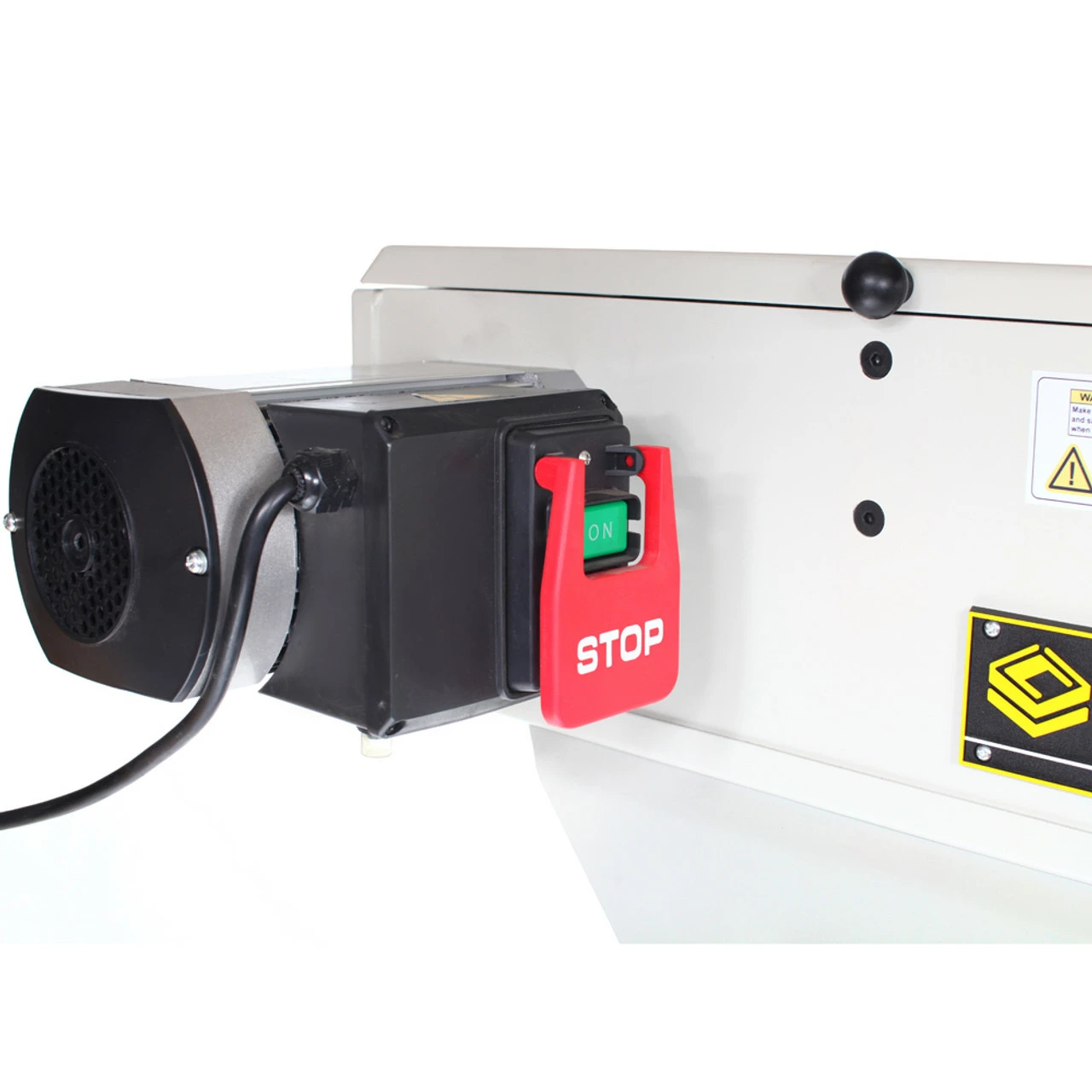

Featuring a powerful 2-HP motor and heavy duty cast iron construction the CX503 is built to the professional metalworker’s demand. The 3” x 78” sanding belt rotates at a speed of 35 m/s on two rubber contact wheels and can be operated horizontally and vertically between 0 – 60 degrees. For optimum dust removal the sander is equipped with two dust ports; one at the front and one at the rear of the machine. The CX503 comes with a sturdy base which ensures stability while operation.

Other features of CX503 are quick angle adjusting lever for adjusting the sander angle, tool rest and an eye shield to protect user’s eyes from sparks produced while sanding.

Like all CX-Series machines, this unit features powder coated paint, sharp looking two tone colours and a full 3 year warranty.

SPECIFICATIONS

Motor Type: TEFC
Motor Horsepower: 2-HP
Motor Phase & Voltage: Single Phase 220-Volt
Amperage: 10-Amps
Bearings: Sealed and Permanently Lubricated
Cycle & RPM: 60 Hertz and 3400 RPM
Sanding Belt Size: 3” x 78”
Contact Wheel Diameter: 7-3/4” (195mm)
Contact Wheel Surface: Rubber
Sanding Belt Speed: 35 m/s
Sanding Belt Tilt: 0 – 60-degree
Width: 26”
Length: 43”
Height: 37”
Shipping Crate: 28” x 19” x 44”
N. Weight: 158 lbs, 72 Kg
G. Weight: 203 lbs, 93 Kg
Warranty: 3-Year
